Conformal Cooling 3D Printing
- MAX PART SIZE:300 x 330 x 450 mm
- LEAD TIMES:From 5 Working Days
- TOLERANCE:±0.06% With A Lower Limit Of ±0.2MM
- MIN PART SIZE:1 x 1 x 8 mm
- LAYER HEIGHT:100 microns
- Storey Height:0.035MM
>>>All uploaded drawings are strictly confidential, check the confidentiality agreement
Conformal Cooling 3D Printing Service – Cooling Waterway 3D Printing Supplier
The concept of conformal cooling emerged as a response to the limitations of traditional cooling channel designs, which typically utilized straight, rigid channels. These designs often resulted in uneven cooling, leading to warping and other defects in molded parts. The advent of 3D printing technology in the 1980s allowed for more complex geometries to be produced, making conformal cooling a feasible solution for modern manufacturing challenges. The incorporation of computer-aided design (CAD) and computational fluid dynamics (CFD) further enhanced the ability to optimize cooling channel designs for specific applications.
Our Online Conformal Cooling 3D Printing Service caters to all your printing mold parts needs. Whether you’re an die casting mold, injection mold, or a electronic mold looking to bring your ideas to life, our printing solution is perfect.Step into the future of innovation with our Conformal Cooling 3D Printing Service. Immerse yourself in a realm where your imagination knows no bounds. Say goodbye to limitations and embrace a world of possibilities. Your creativity awaits – are you ready to leap?
Our expertise in additive manufacturing, high-end functional testing prototypes, 24 hours services, competitive price, on time delivery drop- shipping to over 150 countries to help you transform your ideas into projects, bring your innovative products to market faster, reduce your production costs, save your research and development time.Be-cu is an accomplished finished parts manufacturer, our workers and craftsman are capable to provide Conformal Cooling 3D Printing services and a wide range of surface treatment services including aluminum anodizing, painting, passivation, electroplating, powder coating, polishing, black oxide, conversion coating, abrasive blasting, etc. Here are the introductions to different types of metal finishes, more details please feel free to contact us.
- Anodizing (Anodized)
- Passivation
- Plating (Electroplating)
- Painting
- Black Oxide (Hot Blackening)
- Polishing
- Powder Coating
- Heat Treatment
- Satin Finish
- Abrasive blasting (Sandblasting)
- Conversion coating
Why Choose Our 3D Printing Service?
- No minimum order quantity
- Metal or plastic 3D printed prototype and production parts in 7-10 days
- Precision custom 3D printing parts at affordable prices
- Online free quote in the shortest time
- Single prototypes or complex shapes are both allowed
- A wide selection of metal or plastic materials
- Commercial and industrial-grade 3D printers
- Cooperative supplier assistance project
- Provide a quick solution for small batches of complex prototypes
- We provide with our partner
- 3D printing services for metals and plastics
- Meet the rapid needs of complex prototype designers

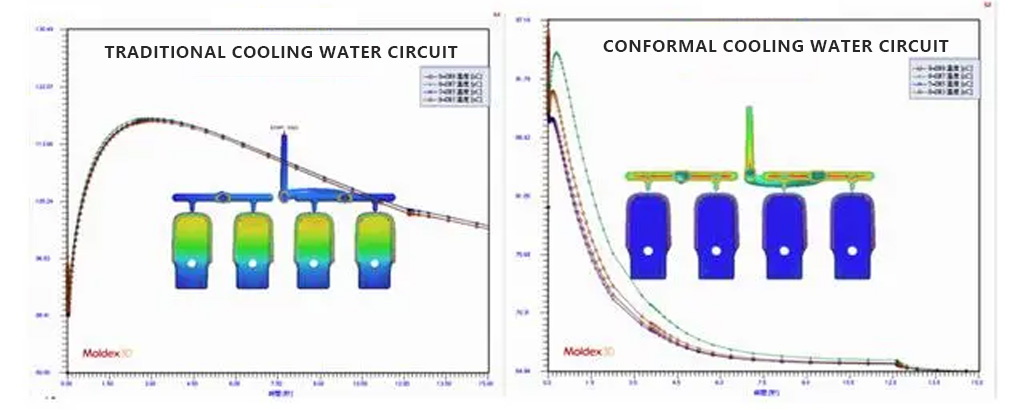

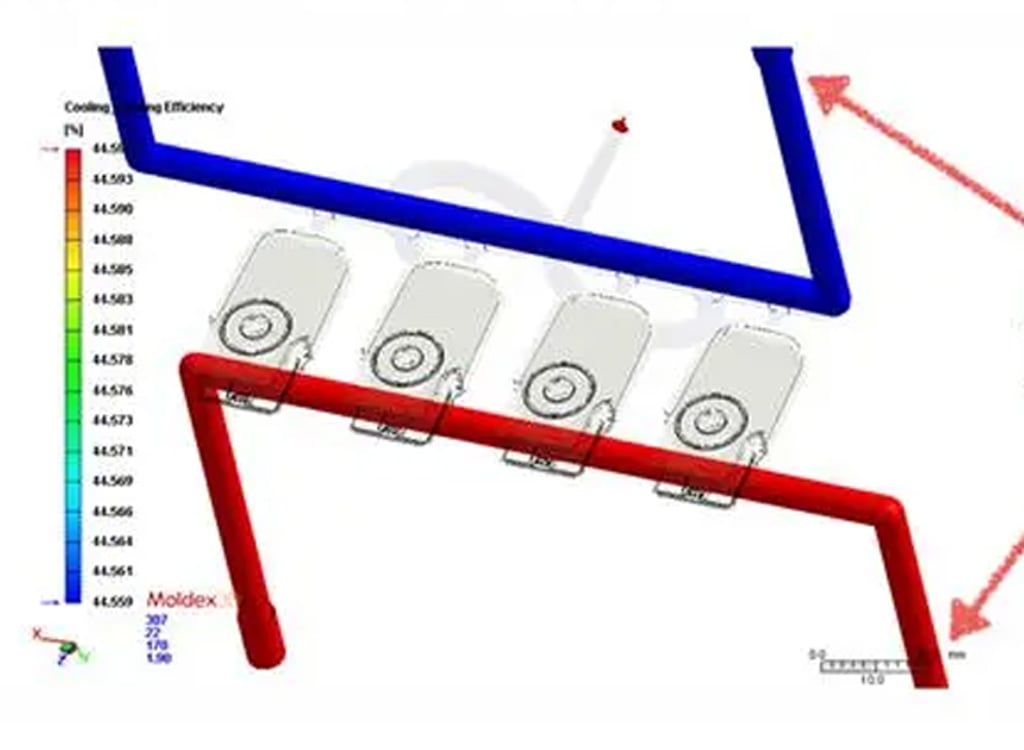

Traditional Cooling Water Circuit vs Conformal Cooling Water Circuit

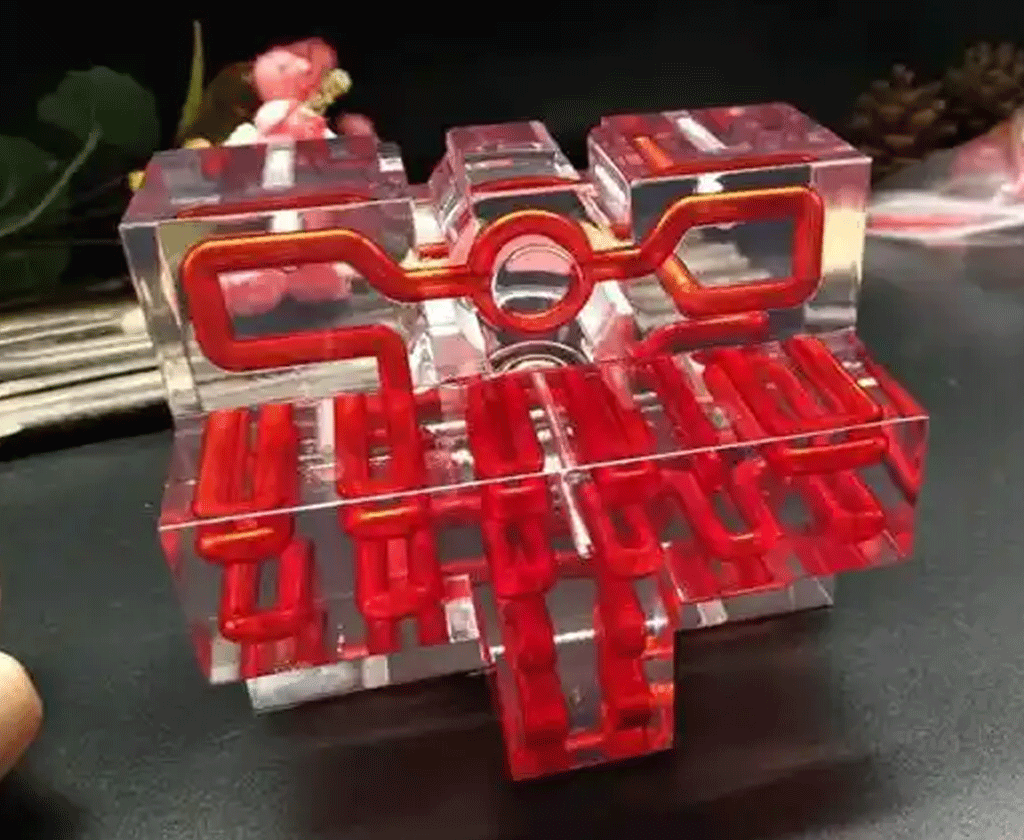

In traditional machining methods, cooling channels can only be cylindrical straight holes, which do not fully conform to the surface of the injection molded parts. However, with the support of metal 3D printing technology, it is possible to break these traditional limitations and achieve conformal cooling channel designs. Within reasonable parameters, channels can be designed to curve freely, have cross-sections of any shape, and adapt their pathways based on the contours of the cavity surface. This results in faster and more uniform cooling, improving the quality of injection molded parts and reducing the injection molding cycle time.

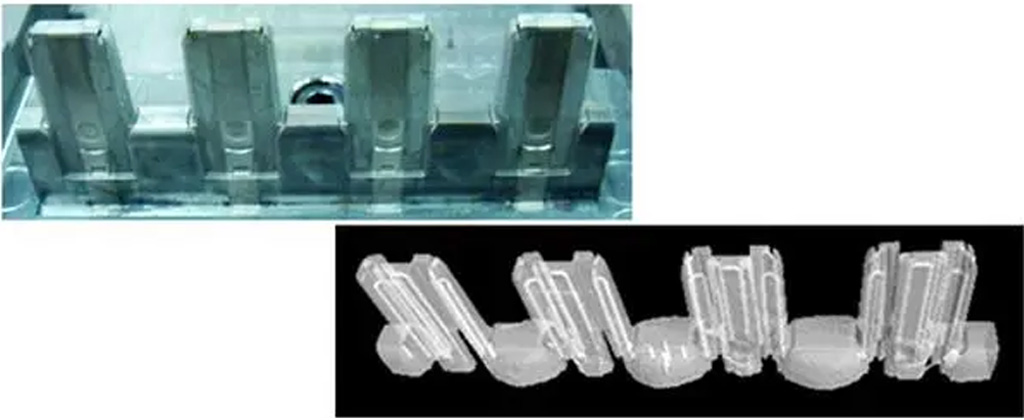

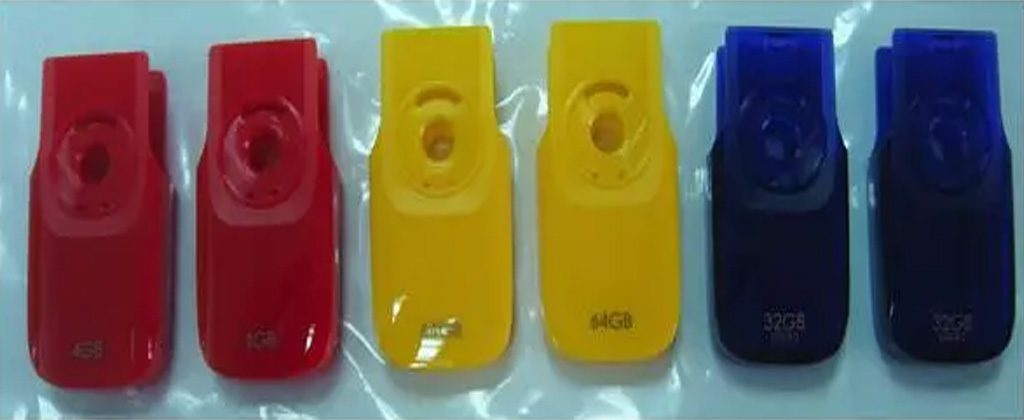

Case/1 Conformal Water Channel USB Cover Mold Case

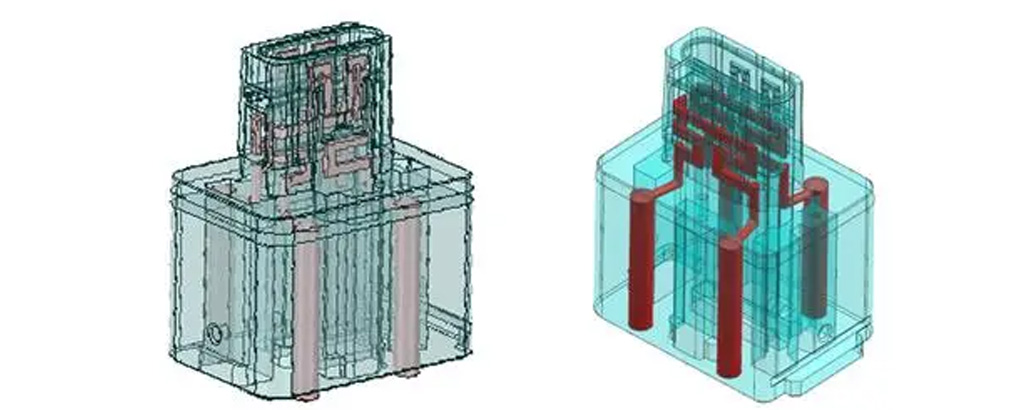

Case/2 Conformal Waterway Connector Mold Case

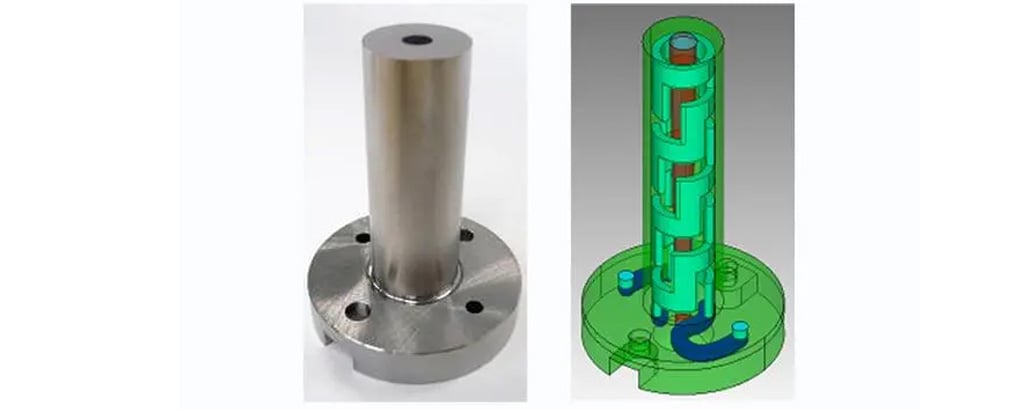

Case/3 Conformal Water Channel Gate Sleeve Case
Cooling Waterway 3D Printing Applications – What is Conformal Cooling Used for
China Top Conformal Cooling Supplier & Manufacturer – Be-cu offers worldwide clients affordable, rapid, high precision custom Conformal Cooling 3d printing Services, variety of materials available to meet the needs of different industries!
What Is Conformal Cooling 3D Printing? – Watercooling 3D Printing Define

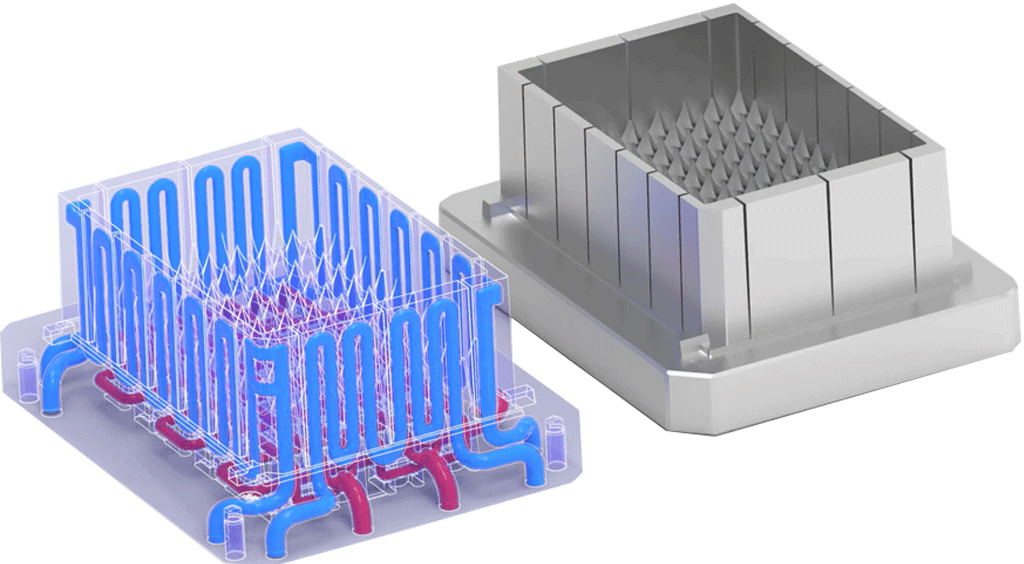

Conformal cooling is an advanced cooling method utilized in the manufacturing of injection molds and other tooling applications, leveraging the capabilities of 3D printing technology. This technique involves the design and production of cooling channels that conform to the shape of the mold cavity, ensuring more efficient heat transfer and reducing cycle times compared to traditional cooling methods. The integration of conformal cooling with 3D printing has revolutionized the way molds are designed and manufactured, leading to improved part quality, reduced production costs, and enhanced overall performance in various industries.

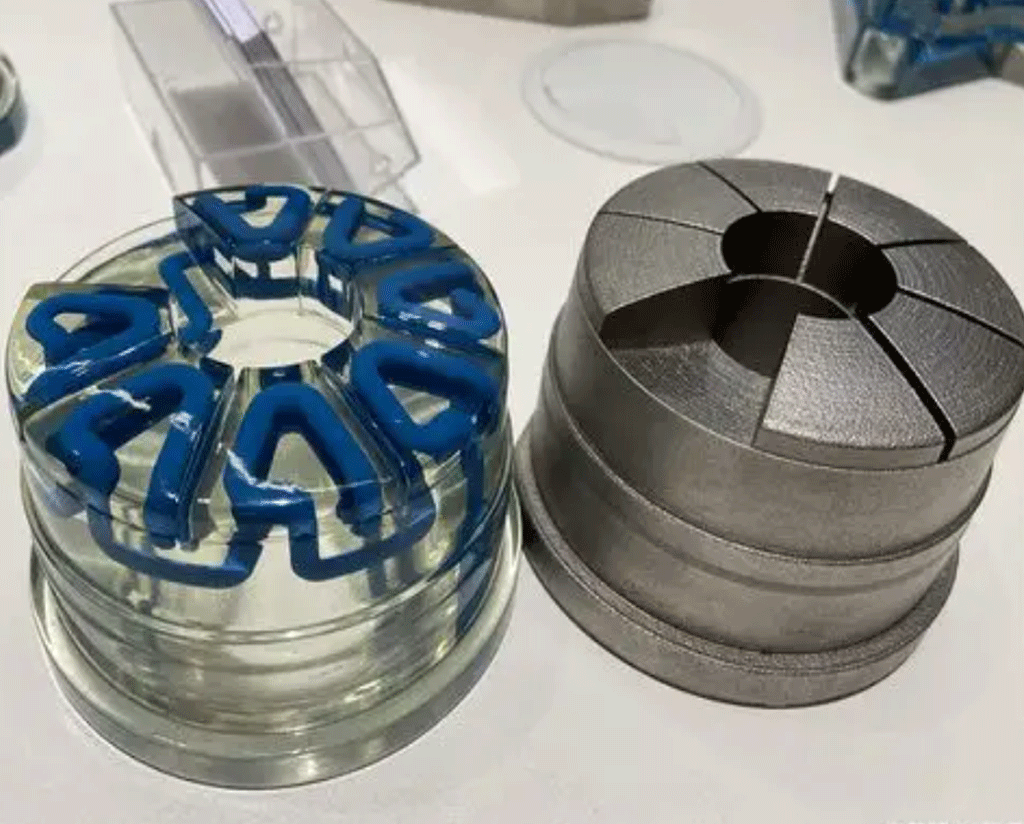

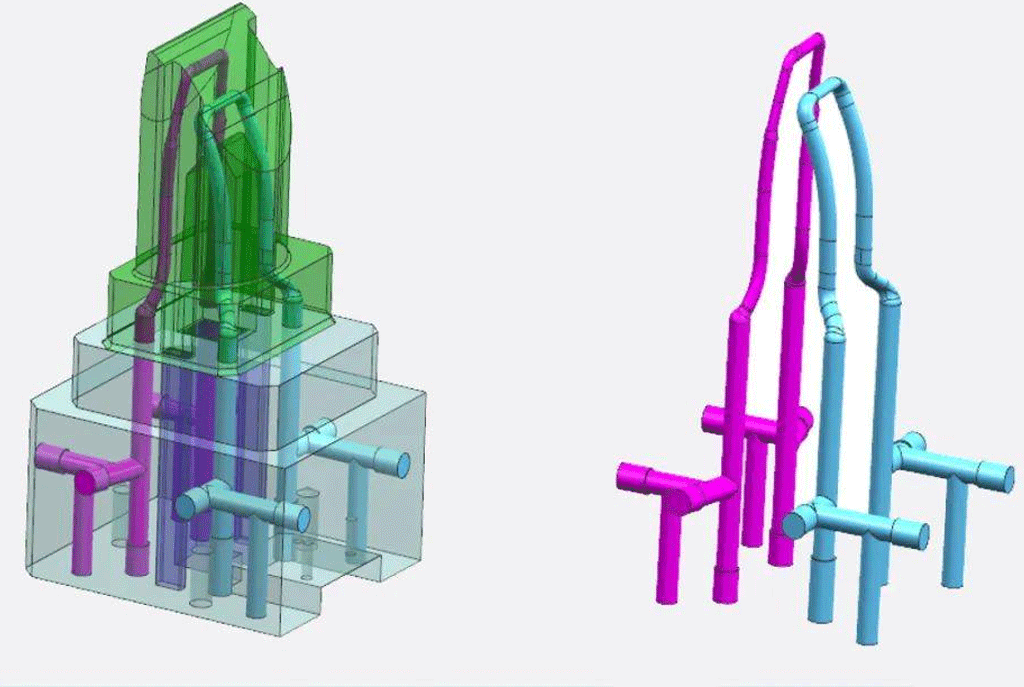

How Does Cooling 3D Printing Work?
So, how is conformal cooling 3D printing manufactured? First, designers use specialized software to create a 3D model of the cooling channels, precisely defining their shape and size to ensure a perfect match with the mold. Then, metal 3D printing equipment builds up materials layer by layer, accurately controlling the process to print parts with complex channel shapes and functionalities. After that, a series of detailed post-processing steps, including heat treatment, sanding, polishing, and inspection, are performed to ensure the quality and performance of the parts are optimized.The advantages of mold 3D printing technology are clear. It significantly boosts production efficiency and shortens production cycles, providing valuable time savings for companies. Additionally, the high flexibility and customization of channel designs lead to notable improvements in product quality and a substantial reduction in defect rates. This technology also helps lower manufacturing costs, offering greater economic benefits and competitive advantages.
Currently, conformal cooling 3D printing technology is widely applied across various fields, including automotive, aerospace, electronics, medical, and packaging industries. Whether in injection molds or die-casting molds, conformal cooling is gradually replacing traditional channel manufacturing methods, becoming a new favorite in the manufacturing sector. Its emergence not only enhances production efficiency and quality but also injects new vitality into the sustainable development of businesses.

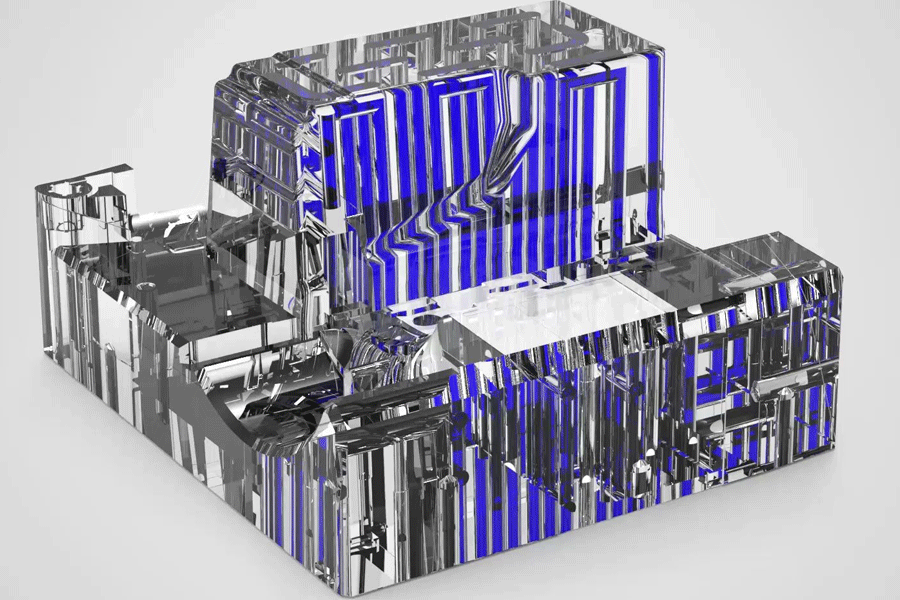

The Advantage Of Conformal Cooling 3D Printing
In the rapidly evolving mold manufacturing industry, 3D printing technology is leading a technological revolution with its unique advantages. Among these, conformal cooling 3D printing technology is bringing unprecedented changes to molds through its flexibility and customizable design capabilities.Conformal Cooling 3D Printing is an innovative method that uses 3D printing technology to create internal cooling channels within molds parts. This technology allows for customized channel designs based on the specific shapes and sizes of products, which are then printed using 3D printing equipment. This method breaks the limitations of traditional machining processes, enabling more complex and balanced cooling channel designs.
- Optimizing Mold Temperature Control:With conformal cooling 3D printing technology, mold temperature can be controlled more precisely. Since the cooling channels are closer to the product, cooling is more uniform, effectively preventing production issues caused by excessively high or low mold temperatures.
- Increasing Product Yield:Conformal Cooling 3D Printing technology reduces the defect rate by accurately controlling mold temperature. This helps improve issues such as product deformation, scorching, white spots, and cloudiness caused by uneven mold temperatures, thereby enhancing the yield of quality products.
- Improving Production Efficiency:Conformal Cooling 3D Printing technology allows for customized designs based on product shapes, ensuring that the cooling channels closely match the product. This shortens cooling time and speeds up demolding, effectively increasing production efficiency.
- Flexibility and Customization:Conformal Cooling 3D Printing technology offers high flexibility and customization capabilities. Designers can create personalized designs based on different product shapes and sizes to meet various complex production needs. This customized approach makes molds more aligned with product characteristics, improving the specificity and efficiency of production.

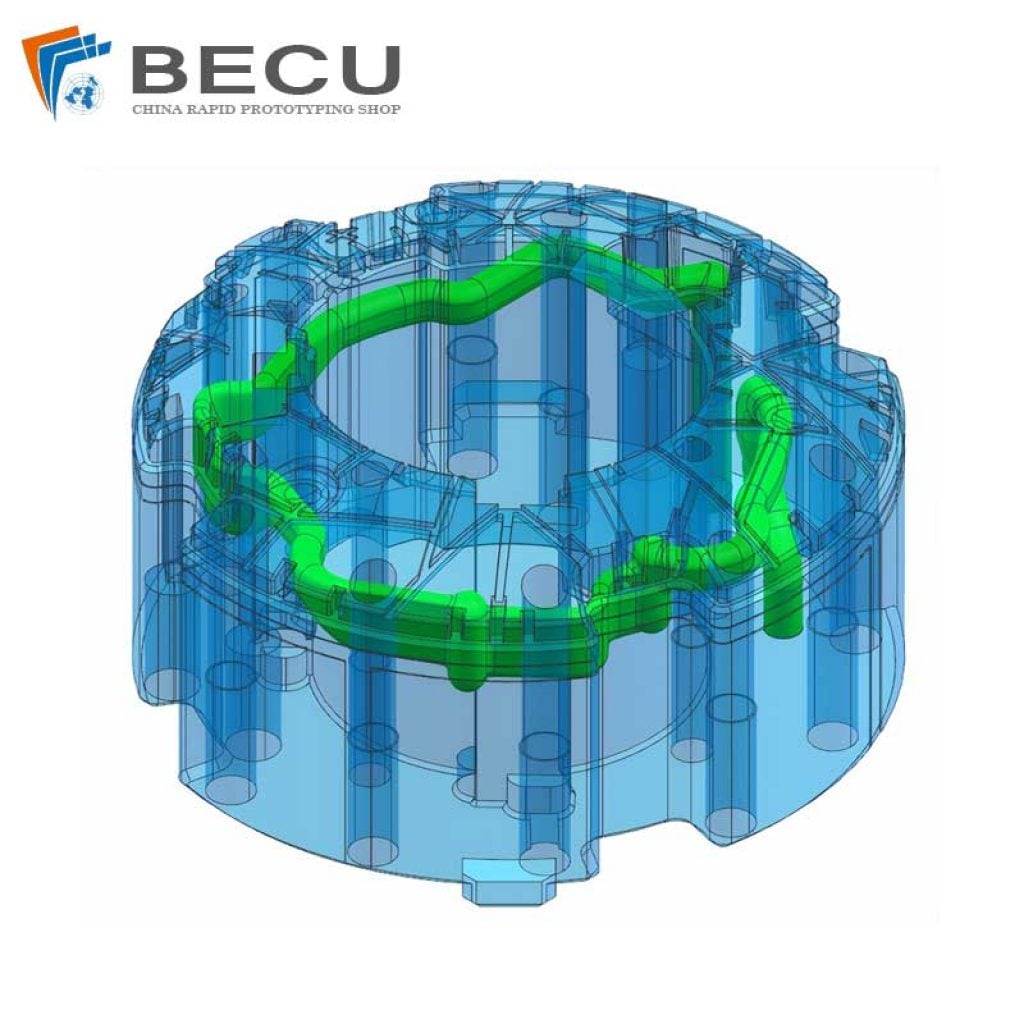

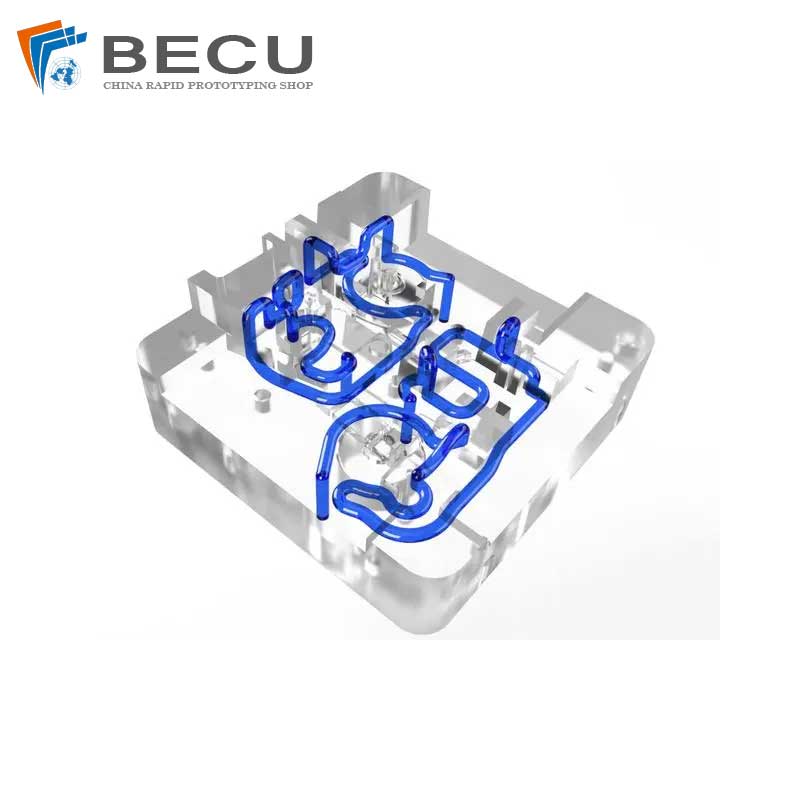

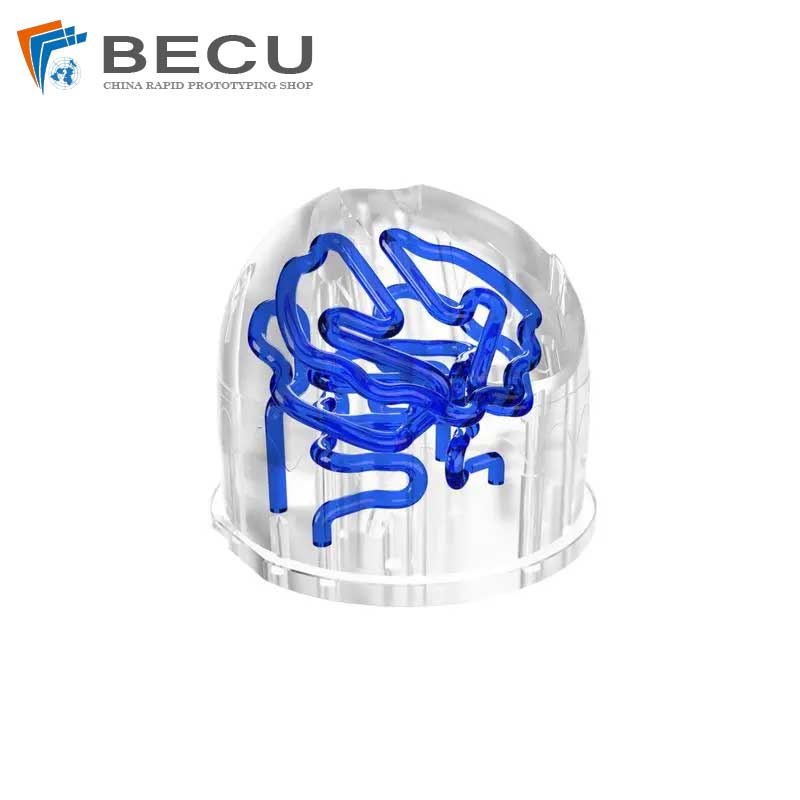

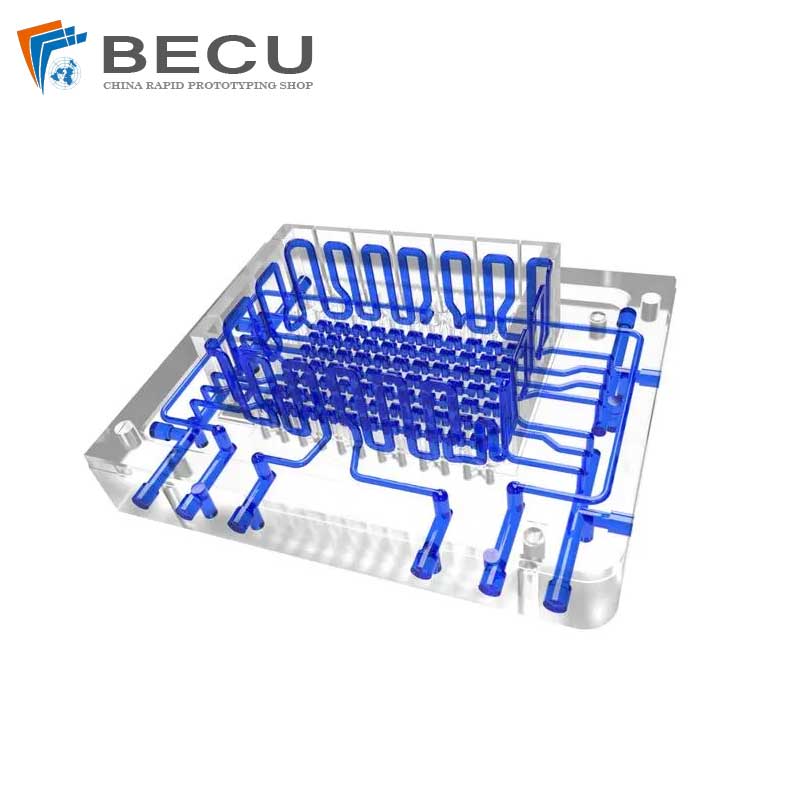

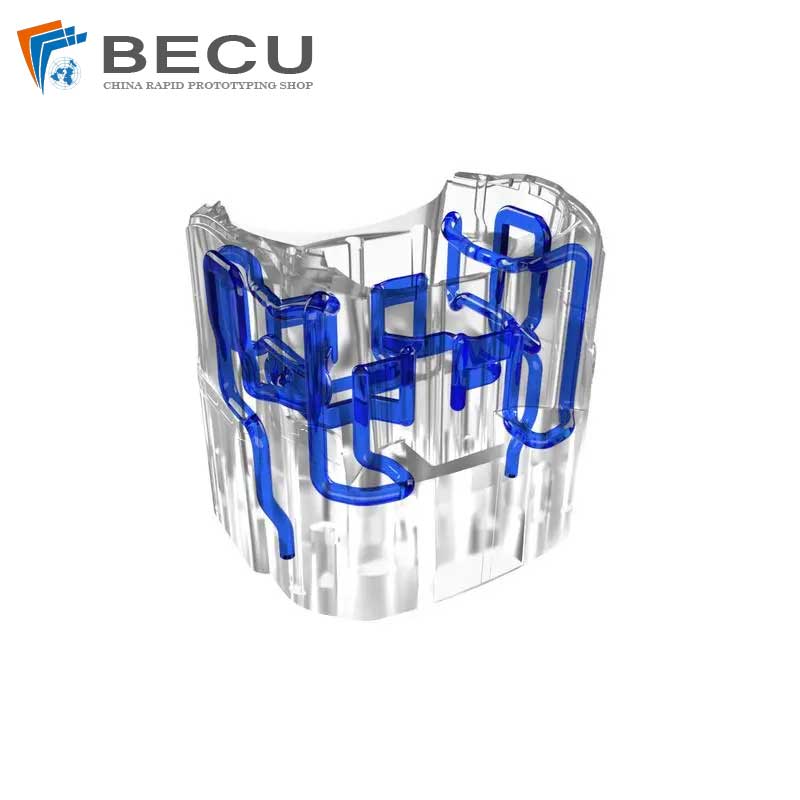

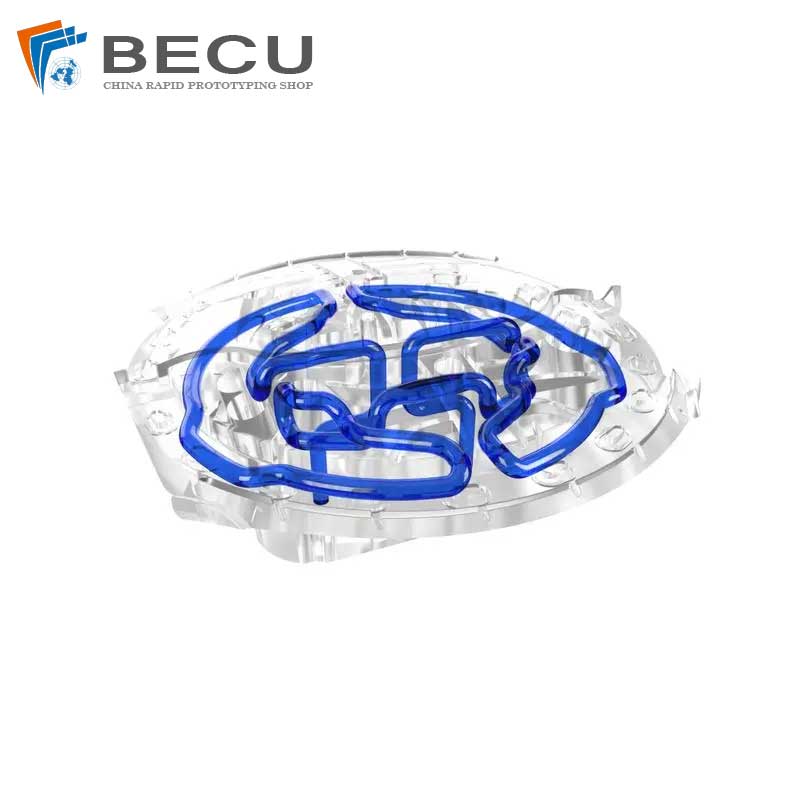

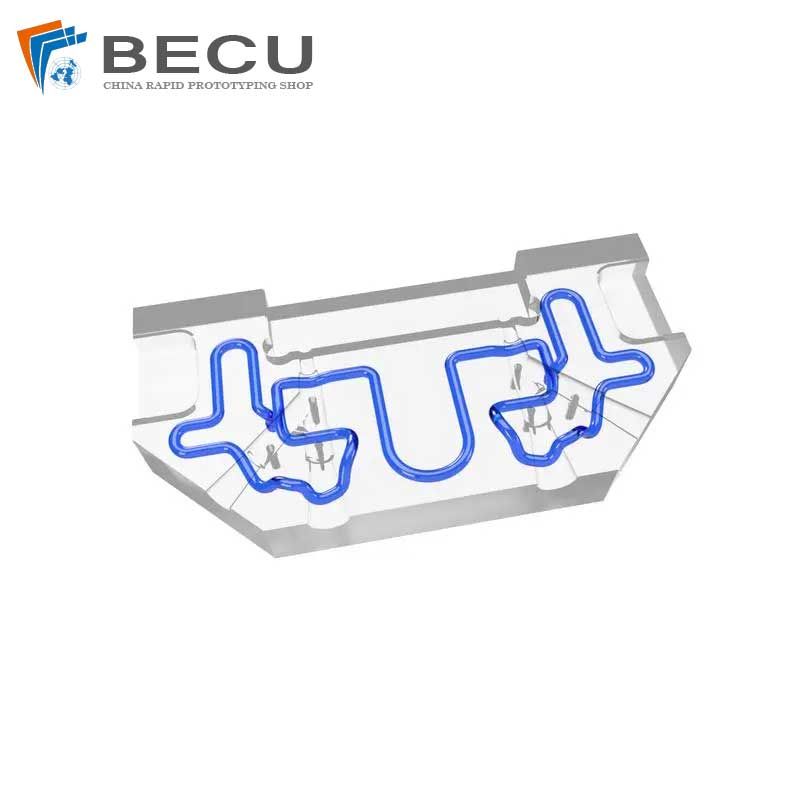

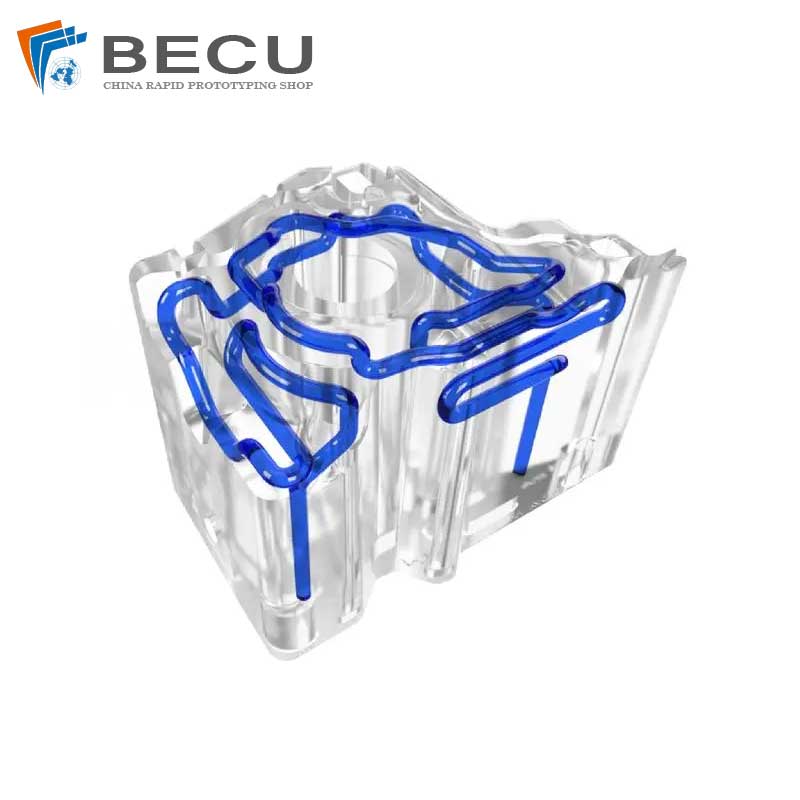

The Case Studies Of Conformal Cooling 3D Printing Parts
You have a complex part design, Our Conformal Cooling 3D Printing service can help you turn it into a reality. With the right equipment, strong technical knowledge, and a focus on quality.. From tool design to finishing and then on to shipment, Be-cu prototpe ensure that every project is completed to a high standard and that your orders are delivered on time, every time.
