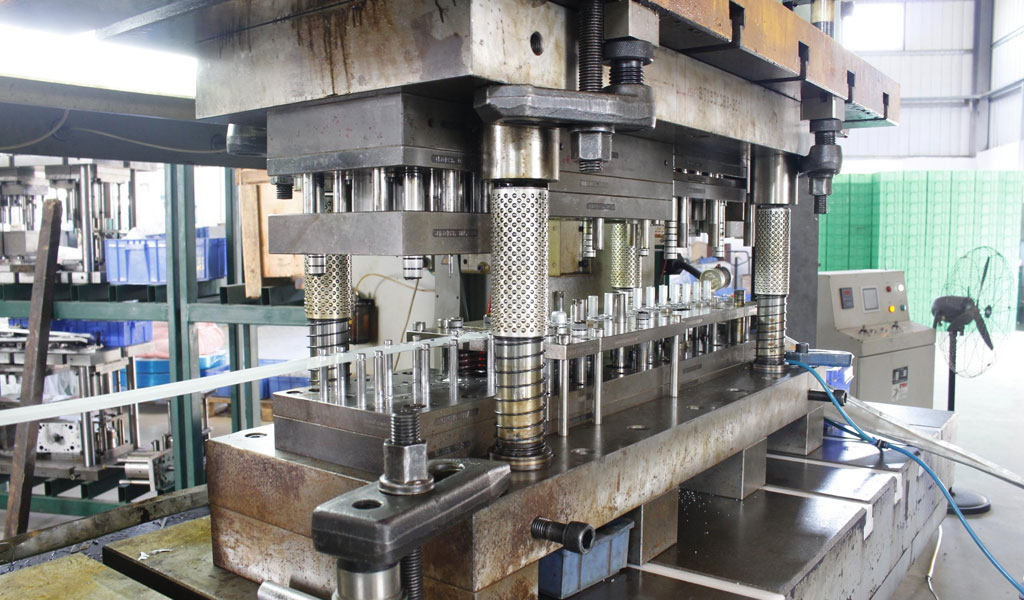

Stainless Steel Deep Drawing
Stainless steel deep drawing is a significant metal forming process used to produce various components, including complex shapes with deep, hollow, or cup-like structures, from flat sheets of stainless steel. This process is widely used across several industries, such as automotive, aerospace, medical devices, kitchenware, and industrial equipment, due to stainless steel’s desirable properties of corrosion resistance, strength, and aesthetic appeal. The deep drawing process involves a combination of mechanical force, material stretching, and compressive forces applied to a blank of stainless steel, with the aim of creating parts without compromising the material’s integrity.
Deep drawing is a specialized form of metal forming where a flat metal sheet, known as a blank, is drawn into a die cavity to produce a part with a deeper profile than the original sheet. In stainless steel deep drawing, this process is performed with stainless steel materials, which are known for their resistance to corrosion, high strength, and versatility in various manufacturing applications. Stainless steel deep drawing is often employed to create parts that require high precision and performance under harsh conditions, such as fuel tanks, pressure vessels, automotive body panels, and more.
Stainless Steel Alloys Used in Deep Drawing
Stainless steel is an alloy of iron with a minimum of 10.5% chromium, which provides the material with excellent corrosion resistance. Stainless steel deep drawing often uses a variety of stainless steel grades, with the most common being:
- 304 Stainless Steel: This is the most widely used stainless steel in deep drawing due to its excellent formability, good corrosion resistance, and moderate strength. It is often used in applications like food processing equipment and kitchen appliances.
- 316 Stainless Steel: This variant contains molybdenum, which enhances its corrosion resistance, especially in aggressive environments. It is frequently used in marine and chemical processing industries.
- 430 Stainless Steel: Known for its ferritic properties, 430 stainless steel is magnetic and offers decent corrosion resistance, typically used for decorative and functional applications like appliance panels.
The selection of stainless steel grade depends on the intended application, cost constraints, and desired mechanical properties such as strength, ductility, and corrosion resistance. Each grade has its own specific characteristics that influence the forming behavior during the deep drawing process.

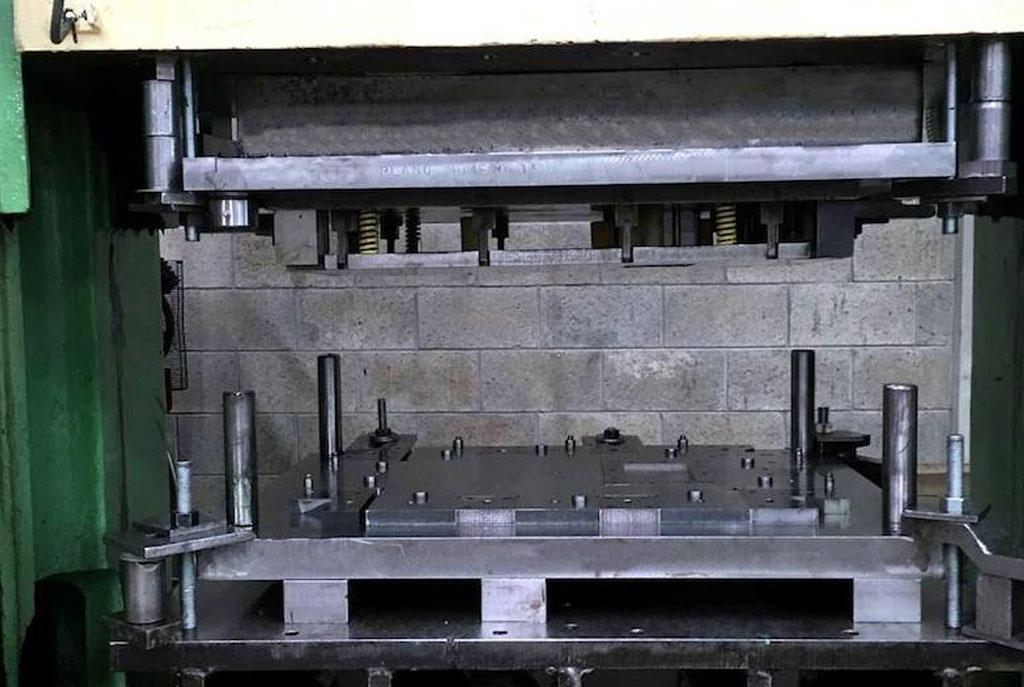

Stainless Steel Deep Drawing – Deep Drawn For Stainless Steel
Stainless steel deep drawing remains a critical manufacturing process across various industries due to its ability to produce complex, high-strength parts with minimal material waste. BE-CU Offering Stainless Steel Deep drawing services for tubes, shells, and cans.
Work with aluminum, brass, copper, cold rolled steel, stainless steel, acrylic, and polycarbonate. Progressive, transfer, or compound die and metal stamping services are also provided. Capable of stamping parts up to 0.1 in. thickness, 38 in. length, 24 in. depth, and 1,000 t capacity. Low to high run production volumes are provided.
Anodizing, sanding, buffing, burnishing, electropolishing, shot blasting, and painting are offered as secondary services. Capable of Kanban manufacturing. Serves agricultural, automotive, construction, medical, and aerospace industries. CE certified.Prototype and low to high volume production runs are offered.
We have been a quick-turn and reliable online manufacturer and supplier for more than 30 years and we are an ISO 9001:2015 certified sheet metal fabricator, always bringing demanding and OEM products with high accuracy and precision. Other than deep drawing, we can also handle other services and processes for metals and plastics in our factory.
Applications of Stainless Steel Deep Drawing
Stainless steel deep drawing is used in a wide range of industries for manufacturing parts that require high strength, corrosion resistance, and precision. Some of the most common applications include:
Stainless Steel Deep Drawing For Automotive Industry
The automotive industry uses stainless steel deep drawing to manufacture a wide range of components, such as fuel tanks, exhaust systems, and structural parts. Stainless steel’s resistance to corrosion and high temperature tolerance makes it ideal for automotive applications, especially in harsh operating environments.
Stainless Steel Deep Drawing For Aerospace Industry
In aerospace, stainless steel deep drawing is used to produce parts that must withstand extreme pressures, temperatures, and corrosive conditions. Examples include aircraft fuselage components, engine parts, and fuel systems. The precision and reliability of deep drawing allow for the production of lightweight yet durable aerospace components.
Stainless Steel Deep Drawing For Kitchenware and Appliances
Stainless steel’s aesthetic appeal and resistance to corrosion make it a popular material for kitchenware and household appliances. Deep-drawn components such as sinks, pots, pans, and appliance panels are commonly produced using this method, ensuring durability and ease of maintenance.
Stainless Steel Deep Drawing For Medical Devices
The medical industry benefits from stainless steel deep drawing for the production of precision components used in medical devices. These parts must meet stringent quality and performance standards, and deep drawing offers the necessary formability without compromising the material’s strength and biocompatibility.
Stainless Steel Deep Drawing For Industrial Equipment
Industrial equipment, including pressure vessels, storage tanks, and pipes, often require deep-drawn stainless steel components. The corrosion-resistant properties of stainless steel ensure that these parts can withstand harsh industrial environments, including exposure to chemicals, high temperatures, and pressure.
Our Parts Case Studies Gallery Of Stainless Steel Deep Drawing
We perform an efficient, accurate, and cost-effective process in-house to provide superior product results for your Stainless Steel deep drawing.Whether you require punching Stainless Steel pieces or custom Stainless Steel parts, we can easily help you. With our expertise in precision Stainless Steel deep drawing and the ability to integrate external combined processes, we can ensure the best performance for your deep drawing Stainless Steel projects.
