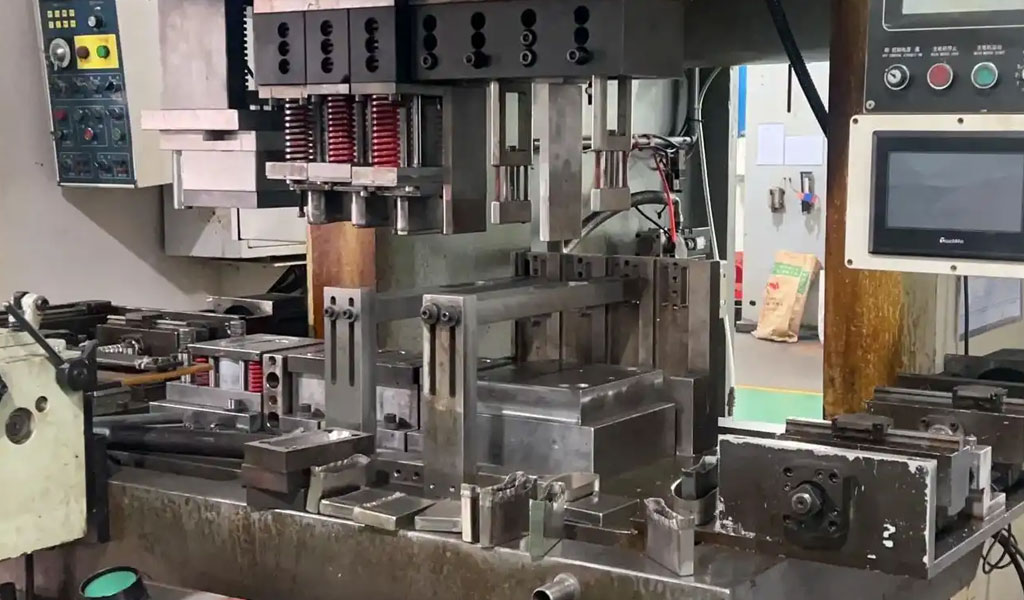

Inconel Deep Drawing Stamping
Deep drawing stamping is a widely utilized manufacturing process that forms metal sheets into desired shapes by applying controlled pressure through a punch and die assembly.
This technique is particularly beneficial for metals known for their high strength and temperature resistance, such as Inconel. Inconel, a family of nickel-chromium-based superalloys, is highly sought after in industries requiring exceptional mechanical properties and resistance to extreme environments.
The fusion of Inconel’s properties with the deep drawing stamping process provides unparalleled solutions for critical applications in aerospace, automotive, chemical processing, and power generation.
Inconel Alloys Used in Deep Drawing
Inconel, a high-performance nickel-chromium-based superalloy, is widely used in deep drawing applications due to its exceptional properties. These materials are engineered for environments that demand resistance to extreme heat, corrosion, and mechanical stress. Various grades of Inconel, such as Inconel 600, 625, 718, and 750, are commonly employed in deep drawing processes, each chosen based on specific application requirements.Common Inconel Grades for Deep Drawing:
Inconel 600:
- Composition: Primarily nickel (72%) with chromium and iron.
- Applications: Heat exchangers, furnace components, and chemical processing equipment.
- Advantages: High corrosion resistance and excellent oxidation resistance up to 1,093°C (2,000°F).
Inconel 625:
- Composition: Nickel (58%) with significant additions of chromium, molybdenum, and niobium.
- Applications: Aerospace components, seawater systems, and pollution control equipment.
- Advantages: Exceptional resistance to acid corrosion and stress corrosion cracking.
Inconel 718:
- Composition: Nickel (50-55%), chromium, and molybdenum with aluminum and titanium for precipitation hardening.
- Applications: Jet engines, gas turbines, and cryogenic tanks.
- Advantages: High yield strength and creep resistance, especially at elevated temperatures.
Inconel 750:
- Composition: Nickel (70%) with chromium, titanium, and aluminum.
- Applications: Aerospace fasteners, springs, and gas turbines.
- Advantages: Excellent high-temperature mechanical properties and corrosion resistance.
Each Inconel grade offers distinct advantages tailored to specific deep drawing stamping applications. The choice of grade depends on factors such as required corrosion resistance, mechanical strength, thermal stability, and the complexity of the desired part geometry. For industries like aerospace, automotive, and chemical processing, the ability to process Inconel grades into high-performance components through deep drawing stamping underscores their value in critical applications. By leveraging the properties of these alloys and optimizing forming processes, manufacturers achieve durable, reliable, and precision-engineered parts.
Inconel Deep Drawing Stamping – Deep Drawn For Inconel
Inconel deep drawing remains a critical manufacturing process across various industries due to its ability to produce complex, high-strength parts with minimal material waste. BE-CU Offering Inconel Deep drawing services for tubes, shells, and cans.
Certified to ISO 9001:2015 standards, our capabilities encompass the precision manufacturing of parts with dimensions up to 24 inches in length, 50 inches in width, and a maximum thickness of 0.500 inches, maintaining tight tolerances of ±0.005 inches. Key features include surface enhancements such as coatings, countersinking, embossing, enameling, heat treatment, and ornamental detailing, as well as functional refinements like threading, tapping, and strain relief.
Our advanced manufacturing techniques include pressing, shearing, coining, forming, perforating, sheet metal fabrication, and CNC machining.
Complementary services extend to surface finishing processes such as plating, anodizing, powder coating, and E-coating, alongside post-processing operations like annealing, stress relieving, vibratory deburring, and tumbling. Additionally, we provide assembly, kitting, painting, riveting, inserting, and welding services, ensuring a comprehensive solution tailored to meet complex manufacturing demands.
Properties of Inconel Relevant to Deep Drawing Stamping
Inconel’s defining characteristics stem from its unique alloying elements, primarily nickel and chromium, along with varying amounts of molybdenum, iron, cobalt, and other metals. The properties of Inconel that make it suitable for deep drawing stamping include:
- High Strength and Toughness: Inconel retains its mechanical integrity under high stress, making it suitable for parts that endure substantial loads.
- Exceptional Corrosion Resistance: Its ability to resist oxidation and chemical degradation ensures longevity, even in acidic or oxidizing environments.
- Temperature Resistance: Withstanding temperatures exceeding 1,000°C, Inconel is ideal for heat-exposed applications such as jet engine components and industrial furnaces.
- Work Hardening: Inconel’s natural tendency to harden when deformed enhances its performance in high-stress scenarios.
- Fatigue Resistance: It excels in environments involving cyclic loading, common in aerospace and automotive applications.
These properties, however, also pose challenges during the deep drawing process, requiring specialized equipment, tooling, and techniques.
Our Parts Case Studies Gallery Of Inconel Deep Drawing
We perform an efficient, accurate, and cost-effective process in-house to provide superior product results for your Inconel deep drawing.Whether you require punching Inconel pieces or custom Inconel parts, we can easily help you. With our expertise in precision Inconel deep drawing and the ability to integrate external combined processes, we can ensure the best performance for your deep drawing Inconel projects.
