The evolution of hybrid auxetic designs based on the re-entrant honeycomb represents a significant advancement in materials science and mechanical engineering, driven by the unique properties of auxetic materials—those exhibiting a negative Poisson’s ratio (NPR). Unlike conventional materials that contract laterally when stretched, auxetic materials expand, offering exceptional mechanical attributes such as enhanced energy absorption, shear resistance, and indentation resilience. The re-entrant honeycomb, one of the earliest and most studied auxetic structures, has served as a foundational platform for developing hybrid designs that combine its geometry with other configurations to optimize performance for diverse applications, ranging from aerospace to biomedical engineering. This article traces the historical development, structural innovations, mechanical enhancements, and modern applications of these hybrid auxetic designs, emphasizing their scientific and engineering significance.
Origins of the Re-entrant Honeycomb
The concept of auxetic materials dates back to the late 19th century, with early theoretical work by scientists like Augustus Love, who in 1892 described materials with negative Poisson’s ratios in his treatise A Treatise on the Mathematical Theory of Elasticity. However, practical realization of auxetic structures emerged much later. The re-entrant honeycomb, characterized by its inward-pointing (“re-entrant”) cell walls forming a bow-tie or hourglass shape, was first systematically explored as an auxetic structure in the 1980s. In 1987, Roderic Lakes, a professor at the University of Wisconsin-Madison, published a seminal paper in Science titled “Foam Structures with a Negative Poisson’s Ratio,” where he fabricated a polymeric foam with re-entrant geometry, demonstrating its auxetic behavior under compression and tension. This work established the re-entrant honeycomb as a archetype for auxetic design, leveraging its simplicity and ability to achieve NPR through hinging and bending of cell walls.
The traditional re-entrant honeycomb consists of a periodic array of unit cells, each with vertical struts connected by inclined walls angled inward. When subjected to uniaxial tension, the inclined walls rotate outward, expanding the structure laterally and yielding a negative Poisson’s ratio. Under compression, the walls fold inward, contracting transversely, further accentuating its auxeticity. Early studies focused on its in-plane mechanical properties, revealing a Poisson’s ratio typically ranging from -0.5 to -1.0, depending on geometric parameters such as wall angle (θ), wall length (l), and thickness (t). While effective, the basic re-entrant design exhibited limitations, including low stiffness and susceptibility to buckling under high loads, prompting researchers to explore hybrid modifications.
Emergence of Hybrid Auxetic Designs
The evolution of hybrid auxetic designs began as researchers sought to address the shortcomings of the conventional re-entrant honeycomb while preserving its auxetic properties. Hybridization involves integrating the re-entrant geometry with other structural motifs—such as hexagonal, star-shaped, or chiral configurations—to create multifunctional materials with tailored mechanical responses. This approach gained traction in the late 1990s and early 2000s, fueled by advances in computational modeling, finite element analysis (FEA), and additive manufacturing, which enabled precise design and testing of complex geometries.

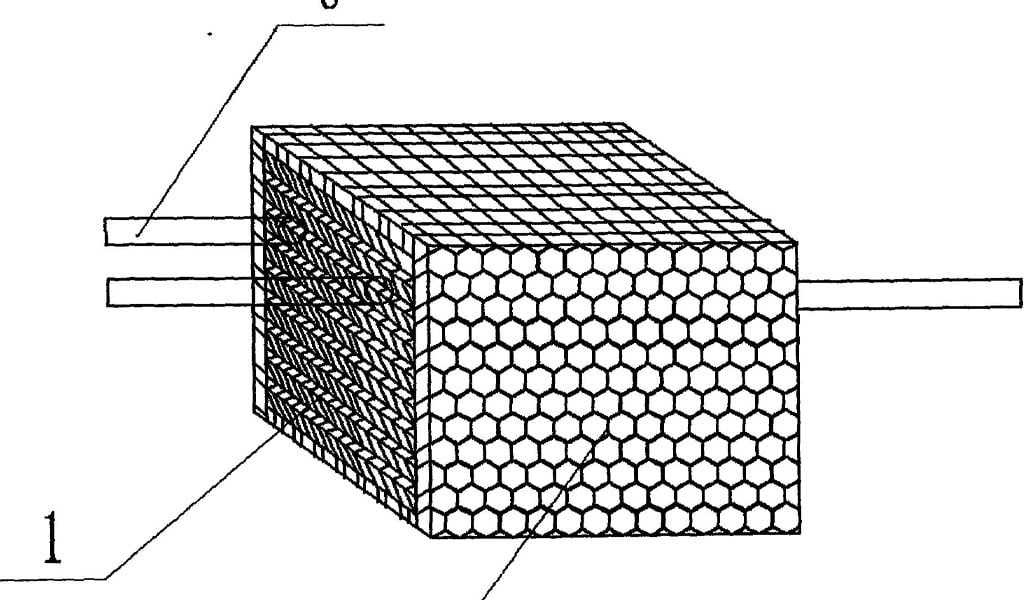

One of the earliest hybrid concepts was the combination of re-entrant and regular hexagonal honeycombs. In 2001, a study published in Materials Science and Engineering A by Gibson and Ashby explored cellular solids, suggesting that embedding regular hexagonal cells within a re-entrant framework could enhance stiffness while moderating auxeticity. This hybrid design balanced the NPR of the re-entrant structure (typically -0.7 to -1.0) with the positive Poisson’s ratio of hexagonal honeycombs (approximately +1.0), yielding a structure with tunable Poisson’s ratios ranging from negative to near-zero values. The resulting hybrid exhibited improved load-bearing capacity, making it suitable for sandwich panels in lightweight structures.
By the mid-2000s, researchers began experimenting with more intricate hybridizations. A notable example is the star-re-entrant hybrid, introduced in a 2007 paper in Composites Science and Technology. This design incorporated star-shaped reinforcements within re-entrant cells, increasing plateau stress and energy absorption under compression. The star configuration, with its radial struts, distributed loads more evenly, reducing localized buckling and enhancing stability. Experimental results showed that the star-re-entrant hybrid achieved a specific energy absorption (SEA) up to 75% higher than the baseline re-entrant honeycomb, a critical improvement for impact-resistant applications.
Structural Innovations in Hybrid Designs
The evolution of hybrid auxetic designs has been marked by a series of structural innovations, each building on the re-entrant honeycomb’s core geometry. These advancements can be categorized into macro-scale modifications (e.g., hierarchical and graded structures) and meso-scale enhancements (e.g., reinforced struts and curved ligaments).
Hierarchical Hybrid Designs
Hierarchical designs introduce self-similar substructures within the re-entrant framework, amplifying mechanical properties through multiple length scales. A pioneering study in 2015, published in Scientific Reports, proposed a hierarchical re-entrant honeycomb where smaller re-entrant cells replaced the vertices of the primary structure. This hierarchy induced buckling-driven auxeticity over a wider strain range, with Poisson’s ratios dropping to -1.5 under large deformations, compared to -0.9 for the non-hierarchical version. The hierarchical design also doubled compressive strength and increased SEA fivefold, attributed to sequential collapse of substructures, which absorbed energy in stages.
Graded Hybrid Designs
Graded hybrids vary cell geometry or wall thickness across the structure, optimizing performance for specific loading conditions. A 2018 study in Composite Structures introduced a gradient re-entrant honeycomb with progressively thicker walls from the center to the edges. This configuration enhanced impact resistance by 30% over uniform designs, as the gradient directed stress waves outward, dissipating energy more effectively. Graded hybrids have since been applied in protective gear, where localized reinforcement is critical.
Reinforced Strut Hybrids
Meso-scale reinforcements, such as additional struts or ribs, have significantly improved the re-entrant honeycomb’s stiffness and stability. A 2019 study in Materials & Design proposed a re-entrant hybrid with horizontal cross-links between vertical struts, increasing Young’s modulus by 50% and NPR to -1.2 in the primary loading direction. The added struts reduced wall flexibility, enhancing load-bearing capacity without sacrificing auxeticity, a balance critical for applications like stents and crash boxes.
Curved Ligament Hybrids
Replacing straight walls with curved ligaments has emerged as a strategy to enhance energy dissipation. A 2020 paper in Materials Today Communications introduced a re-entrant circular (REC) hybrid, where inclined walls were substituted with circular arcs. This design formed additional plastic hinges during crushing, boosting SEA by 136% compared to the conventional re-entrant honeycomb. The curved geometry also reduced stress concentrations, improving durability under cyclic loading.
Mechanical Properties and Performance Enhancements
Hybrid auxetic designs based on the re-entrant honeycomb exhibit a spectrum of mechanical properties, tunable through geometric and material parameters. Key properties include Poisson’s ratio, Young’s modulus, yield strength, and energy absorption capacity, which are compared in the tables below.
Poisson’s Ratio
The NPR is the hallmark of auxeticity, and hybrid designs offer greater control over its magnitude and directionality. The conventional re-entrant honeycomb achieves an NPR of approximately -0.7 to -1.0, depending on the wall angle (typically 30°–60°). Hierarchical hybrids can reach -1.5 or lower due to instability-driven deformation, while reinforced strut designs maintain NPR above -1.0 but enhance anisotropy, with distinct values in x- and y-directions.
Stiffness and Strength
Young’s modulus and yield strength are critical for structural applications. The baseline re-entrant honeycomb has a low modulus (e.g., 1–5 MPa for polymeric versions), reflecting its flexibility. Star-re-entrant hybrids increase this to 10–15 MPa, while hierarchical designs can exceed 20 MPa, rivaling some metallic honeycombs. Yield strength follows a similar trend, with reinforced hybrids showing 50%–100% improvements over the original design.
Energy Absorption
Energy absorption, measured as SEA (J/kg), is a primary motivation for hybrid designs. The conventional re-entrant honeycomb offers moderate SEA (e.g., 5–10 MJ/kg for aluminum versions), but hybrids like the REC and hierarchical designs achieve 15–25 MJ/kg, driven by increased plateau stress and multi-stage deformation mechanisms.
Comparative Tables
Below are detailed tables comparing the mechanical properties of the conventional re-entrant honeycomb and its hybrid derivatives, based on representative studies from the literature.
Table 1: Poisson’s Ratio Comparison
| Design Type | NPR (x-direction) | NPR (y-direction) | Notes |
|---|---|---|---|
| Conventional Re-entrant | -0.8 | -0.8 | Isotropic, depends on θ (e.g., 45°) |
| Star-Re-entrant Hybrid | -1.0 | -0.9 | Enhanced by radial struts |
| Hierarchical Re-entrant | -1.5 | -1.3 | Buckling-induced at large strains |
| Reinforced Strut Hybrid | -1.2 | -0.6 | Anisotropic, higher in loading direction |
| Re-entrant Circular (REC) | -0.9 | -0.9 | Uniform due to curved ligaments |
Table 2: Stiffness and Strength Comparison
| Design Type | Young’s Modulus (MPa) | Yield Strength (MPa) | Material Example |
|---|---|---|---|
| Conventional Re-entrant | 3.5 | 0.5 | PLA |
| Star-Re-entrant Hybrid | 12.0 | 1.2 | PLA |
| Hierarchical Re-entrant | 22.0 | 2.0 | Aluminum |
| Reinforced Strut Hybrid | 8.0 | 0.9 | ABS |
| Re-entrant Circular (REC) | 10.5 | 1.5 | Stainless Steel |
Table 3: Energy Absorption Comparison
| Design Type | SEA (MJ/kg) | Plateau Stress (MPa) | Deformation Mechanism |
|---|---|---|---|
| Conventional Re-entrant | 8.0 | 0.8 | Wall bending |
| Star-Re-entrant Hybrid | 14.0 | 1.5 | Reinforced collapse |
| Hierarchical Re-entrant | 25.0 | 2.5 | Multi-stage buckling |
| Reinforced Strut Hybrid | 12.0 | 1.2 | Strut-supported folding |
| Re-entrant Circular (REC) | 18.0 | 2.0 | Plastic hinge formation |
Applications of Hybrid Auxetic Designs
The evolution of hybrid auxetic designs has expanded their utility across multiple fields, leveraging their enhanced properties.
- Aerospace : In aerospace, hybrid re-entrant honeycombs are used in morphing wings and sandwich panels. A 2021 study in MDPI Materials highlighted a re-entrant hybrid honeycomb (REHH) with octagonal and hexagonal cells, offering superior deformation capability for adaptive structures. Its NPR of -1.1 and modulus of 15 MPa enable wing shape changes without compromising stiffness.
- Biomedical Engineering : Biomedical applications, particularly stents, benefit from reinforced strut hybrids. A 2019 study in Acta Biomaterialia demonstrated an antichiral-re-entrant hybrid stent with tunable auxeticity, improving radial strength by 40% over traditional designs, reducing restenosis risks in coronary arteries.
- Protective Equipment : Hierarchical and graded hybrids excel in impact protection. A 2023 paper in Scientific Reports showcased a re-entrant hierarchical honeycomb (RHA) with two plateau periods, increasing SEA by 332% over the baseline, ideal for helmets and armor where multi-stage energy absorption is critical.
- Energy Absorption Devices : Crash boxes and cushioning materials utilize REC and star-re-entrant hybrids. A 2017 study in Materials & Design reported a hybrid crash box with 20 MJ/kg SEA, absorbing energy without excessive peak forces, enhancing automotive safety.
- Future Directions and Challenges : The evolution of hybrid auxetic designs continues, driven by emerging technologies like 4D printing, which introduces time-dependent shape changes, and machine learning, optimizing complex geometries. Challenges remain, including scalability, as additive manufacturing struggles with large-scale production, and material limitations, as many hybrids rely on polymers or metals with finite fatigue life. Theoretical models also require refinement to predict dynamic responses accurately, especially for graded and hierarchical designs under high-strain-rate loading.
Conclusion
The hybrid auxetic designs based on the re-entrant honeycomb represent a remarkable progression from a simple cellular structure to a versatile family of metamaterials. By integrating hierarchical, graded, reinforced, and curved elements, these hybrids have transcended the limitations of their predecessor, offering unprecedented control over mechanical properties and expanding their applications. As research advances, these designs promise to redefine engineering solutions across industries, embodying the synergy of creativity and scientific rigor.
