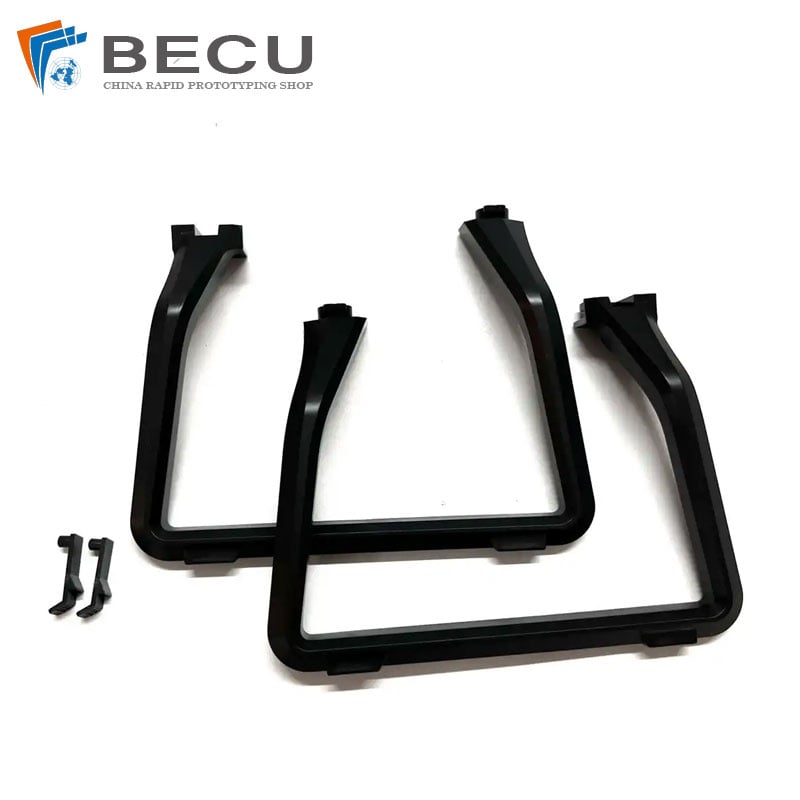

AZ91D CNC Machining Quadcopter Arm Landing Gear

Quadcopter Arm Landing Gear

• Product Name: Magnesium Parts
• No+Color:Custom
• Surface Treatment: Customized
• Product Material: Magnesium
• Proofing Cycle:7 days(100000 pcs/M)
• Application:Precision Cnc Machining
• machining Factory:Be-cu Rapid Prototyping Companies
• Product Category: Drone
• Production Process: Cnc Machining
• Size: According To Customer’s Drawings

Drone | Magnesium

High-Quality AZ91D CNC Machining Quadcopter Arm Landing Gear

In the rapidly evolving field of unmanned aerial vehicles (UAVs), commonly referred to as drones, the quadcopter configuration has emerged as a dominant design due to its stability, versatility, and ease of control. Central to the functionality and durability of quadcopters are their structural components, particularly the arms and landing gear, which must balance lightweight construction with mechanical strength and resilience. The integration of advanced manufacturing techniques, such as computer numerical control (CNC) machining, with high-performance materials like the magnesium alloy AZ91D, has revolutionized the production of these critical components.

For AZ91D, CNC machining involves specific considerations due to the material’s properties. Magnesium alloys are highly machinable, with a low cutting force requirement and excellent chip formation, allowing for high-speed machining that reduces production time. However, magnesium’s flammability poses a safety challenge; fine chips or dust can ignite under certain conditions, necessitating the use of coolant (often water-based) and dust extraction systems during machining. Multi-axis CNC machines, particularly 5-axis systems, are preferred for quadcopter arm landing gear due to their ability to create intricate features—such as curved arm profiles, mounting points for motors, and integrated landing skids—without requiring multiple setups, thus minimizing errors and enhancing structural integrity.

The arm landing gear of a quadcopter serves dual purposes: it extends from the central frame to support the propulsion motors and propellers, and it provides a stable base for takeoff and landing. In traditional designs, arms and landing gear are separate components, often assembled using fasteners or adhesives. However, advancements in CNC machining and materials like AZ91D have enabled the development of integrated arm landing gear, where the arm extends downward to form a skid or leg, reducing part count, weight, and assembly complexity. This design is particularly advantageous for lightweight racing drones, delivery quadcopters, and hobbyist models, where every gram impacts performance.

Key design considerations for AZ91D CNC-machined arm landing gear include structural rigidity, vibration damping, and weight optimization. The arm must resist bending and torsional forces induced by motor thrust and aerodynamic drag, while the landing gear must absorb impact energy without fracturing. AZ91D’s moderate ductility allows for slight deformation under load, providing a degree of toughness, though its relatively low elongation compared to aluminum alloys necessitates careful stress analysis. Finite element analysis (FEA) is often employed during the design phase to simulate load conditions and optimize wall thickness, ribbing, and fillet radii, ensuring the component meets performance requirements without excessive material use.

The Advantages Of CNC Machining Magnesium AZ61A Drone Blade Protection Cover

• – Excellent wear and impact resistance
• – Durable and solid, long lifetime
• – Good strength and electrical conductivity
• – Customization based on customer specification

Specifications of AZ91D CNC Machining Quadcopter Arm Landing Gear

The Detail Of BE-CU Cnc Milling Company

Looking for low cost CNC milling parts with unparalleled quality? BE-CU Prototype is a professional China CNC company provides superior precision CNC milling service with advanced machines including CMC milling center and milling machining centers from the general 3-axis to 5-axis and accomplished machinists. Our experienced operators proficient in CAD (computer-aided design) and CAM (computer-aided manufacturing) programs are always finding the best way to produce the highest quality CNC milled parts & components for clients. With strong capabilities and extensive experiences, we can provide top-grade but cost-effective custom CNC milling services from China including 3-axis CNC milling and 5-axis milling for high-speed CNC manufacturing, rapid prototyping, and precision CNC milling and turning. Our high-quality rapid CNC milling products are involved in the field of automation design, lockset, automobile parts machining, machinery milling, defense industry, medical equipment, lighting parts machining, etc.

The Machining Material Of CNC Milling
